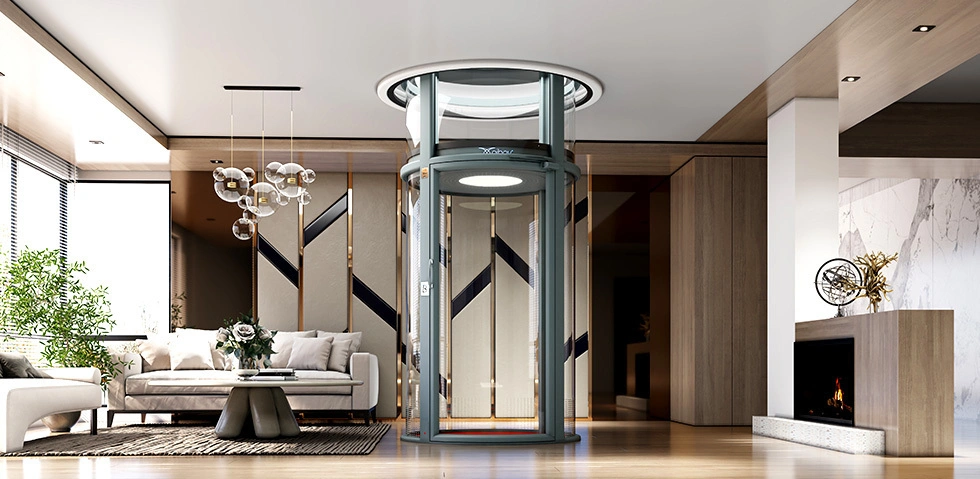

Home Elevator — Elevating Comfort with Refined Luxury
More Space. More Smoothness.
The Nibav Series III Max builds upon the strengths of the Series III Standard, offering a more spacious and refined lift experience. Its near-transparent panoramic cabin creates a light, open feel that blends effortlessly into the home environment. Designed without a pit or machine room, it delivers quiet, fluid movement without heavy construction or visual bulk.
Thoughtfully designed to balance space and efficiency, the Series III Max installs quickly with minimal impact on daily living. Whether upgrading an existing residence or integrating into a new home, it brings together precision engineering, elegant design, and installation simplicity—creating a home lift experience that feels modern, secure, and effortlessly comfortable.
Series III Max Specifications – At a Glance
The Series III Max is engineered using advanced pneumatic vacuum technology to deliver greater cabin space and higher load capacity for residential use. With a maximum travel height of up to 13.5 metres (50 feet) and a 240 kg capacity, it is designed to offer smooth, quiet mobility without the need for a shaft, pit, or machine room—making it a premium solution for modern homes with limited space.
Maximum Stops
Up to 4 stops (G + 3)
Max Travel Height
13,500 mm / 531 in
Rated Load Capacity
240 kg / 529 lbs
Internal Cabin Diameter
1160 mm / 46 in
Passenger Capacity
Up to 4 persons
External Cylinder Diameter
1343 mm / 53 in
Cabin Height
1950 mm / 76.7 in
Clear Door Opening
508 mm / 20 in
Headroom Requirement
2436 – 2800 mm / 95.9 – 110.2 in
Power Supply
Single-phase power; no electricity used during descent
Minimum Headroom
2436 – 2800 mm / 95.9 – 110.2 in
Installation Type
Zero- pit design with self-supported hybrid shaft (polycarbonate)
Certifications
Manufactured under the ISO 9001:2015 Quality Management System and TÜV NORD Certified
Why Choose the Nibav Series III Max Home Lift?
Designed to deliver enhanced performance and refined comfort, the Series III Max brings together advanced engineering, energy efficiency, and elegant design in a single solution. From its sculpted form to its quiet, seamless movement, every journey feels smooth, controlled, and effortlessly sophisticated.
- Frameless panoramic aluminium door paired with a curved designer structure for a contemporary visual appeal.
- Precision-controlled landing system ensures gentle starts, smooth travel, and accurate floor alignment.
- Zero pit and no machine room design allows faster installation with minimal structural intervention.
- Built to meet international safety standards and developed exclusively for residential applications.
What Makes Series III Max Home Lifts Stand Out?
Panoramic Design & Refined Construction
The Series III Max features a transparent polycarbonate cabin and shaft that eliminate the enclosed feeling common in traditional elevators, offering greater visual openness and comfort. Its seamless, screw-free finish delivers a premium appearance, complemented by ambient lighting, personalised engravings, and a wide selection of sophisticated colour options to suit modern interiors.
Smooth Ride Quality with Accurate Floor Levelling
An advanced suspension and control system ensures gentle acceleration, controlled deceleration, and precise alignment at every stop. Combined with intelligent landing technology and a low-noise control board, each journey feels smooth, quiet, and consistently accurate.
Comprehensive Safety Architecture for Families
Safety is built into every layer of the Series III Max, with redundant braking systems, advanced locking mechanisms, backup battery support, and integrated emergency communication. Features such as automatic descent during power failure, emergency landing controls, child safety functions, and the Sure Stop system provide dependable protection for all family members.
Space-Efficient and Retrofit-Ready Design
The self-supporting, pitless structure allows installation within a short timeframe, typically completed in a few working days. Its modular CKD construction enables relocation if required, while flexible door configurations and future stop additions ensure long-term adaptability.
Low-Noise and Energy-Efficient Operation
Operating on single-phase power, the Series III Max uses electricity only during ascent and none while descending. With optional sound-insulated cabins and ultra-quiet electronic control systems, it delivers one of the most silent and energy-efficient home lift experiences available.
Elevate Comfort and Design at Home with Nibav Home Lifts
Nibav home lifts feature a self-supporting structure and semi-assembled components, allowing installation to be completed efficiently within 4–5 working days with minimal disruption to the home.
Finish Options:
Standard
Premium
Metallic

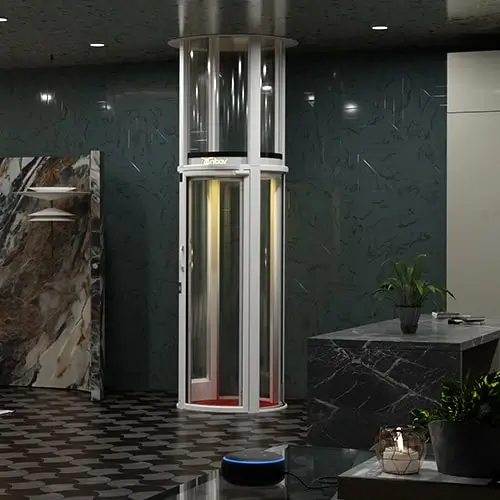

Safety Layers – Confidence in Every Ride
Automatic Safe Descent
Automatically guides the lift to the lowest level during a power interruption.
Emergency Landing Control
Manual control switch inside and outside the cabin for safe, guided descent.
Sure Stop Safety Mechanism
A patented locking system instantly stops movement if pressure or speed varies beyond safe limits.
Manual Door Release
Allows authorised personnel to unlock the door from outside during rare emergency situations.
Rapid Rescue Latch (RRL)
Provides quick and secure access to the cabin for technicians or rescue teams when needed.
Layered Safety Designed Around Your Family
Every aspect of the Series III Max is engineered with family safety as a priority, integrating multiple protective systems that work together for dependable everyday use.
- Five independent safety layers engineered with built-in redundancy for consistent protection.
- Dual HCC braking system using hardened cross-compound brakes for fast, controlled stopping.
- Rapid Rescue Latch (RRL) allowing authorised personnel safe and secure access during emergencies.
- Automatic descent function that smoothly guides the cabin to the nearest level during power failure.
- AUX battery backup supporting essential functions such as lighting, ventilation, alarm, and communication.
- Child safety switch and Sure-Stop system designed to prevent unintended or unsafe movement.
- Electric door locking with emergency alarm for added operational security.
- GSM-based communication module enabling quick assistance whenever required.
Enhance Your Interiors with Customisable Lift Finishes
Nibav offers an extensive selection of colour finishes and materials, allowing the home lift to blend seamlessly with a wide range of interior design styles.

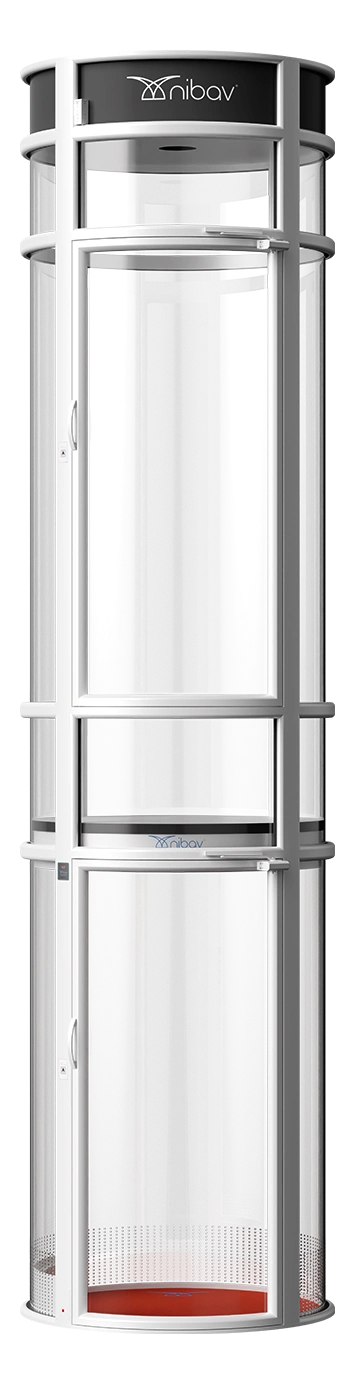

Standard Finishes
Premium Finishes
Metallic Finishes
Limited Edition ( Matt / Glossy )
Carpet Options
Customisation & Design Flexibility
Designed to reflect your personal style, the Series III Max blends seamlessly with your home interiors and everyday living.
14 cabin colour options with personalised engraving possibilities.
4 carpet choices available in Beige, Red, Grey, and Black.
Adjustable ambient lighting to match your interior mood and preference.
Frameless panoramic aluminium door for a modern, open appearance.
Concealed hinges and hidden sensors that maintain a clean, uninterrupted finish.
Wireless cabin design with a curved profile for a refined visual flow.
Optional comfort features including a foldable seat, handrail, and ceiling or floor cover plates.
Performance & Engineering Highlights
Precision FLT locking system for accurate and stable floor alignment.
Quiet main control board with software that can be updated when required.
Usage tracking system to help plan regular servicing and maintenance.
Durable carbon seal design for long-lasting and reliable operation.
Energy-saving operation with no power used while descending.
Automatic return feature that moves the lift to a standby position when not in use.
Accessible design suitable for wheelchair users, with an optional foldable seat.
Installation &Maintenance
Installation Duration: Modular CKD design allows completion within 2–3 working days.
Civil Construction: No civil work required due to the self-supporting structure.
Relocation Capability: The lift can be dismantled and installed again at a new location if needed.
Maintenance Needs: Grease-free engineering ensures minimal upkeep and low maintenance costs.
Warranty Coverage: Lifetime warranty provided on the motor and sealing components.
Is Series III Max Right for Your Home?
Homeowners seeking a more spacious and refined upgrade beyond the Series III Standard.
Families looking for a safe, comfortable home lift solution suitable for children and elderly members.
Residents of duplexes, villas, and multi-level homes who need a retrofit-friendly lift with minimal structural impact.
Individuals who value both performance and design, and want a home lift that stands out visually as well as functionally.
Ready to experience Series III Max?
Step into the next generation of home mobility with Series III Max. Request a customised quote or schedule a live demonstration at your nearest Nibav Experience Centre. More than a home lift, Series III Max enhances the way you move and live within your home.
Why Series III Max Exists
The Nibav Series III Max was developed to offer a more spacious and comfortable home lift solution for families who require additional room beyond a standard model. It is ideal for households with wheelchair users, elderly members, or situations where multiple occupants need to travel together safely and comfortably.
By combining the efficiency of compact, air-driven home lifts with an enlarged cabin and higher load capacity, Series III Max enhances vertical movement within modern homes. It delivers smoother operation, improved accessibility, and greater confidence in everyday residential mobility.
What Challenges Does Series III Max Solve?
Limited cabin space in conventional lifts
The larger cabin design reduces crowding and comfortably accommodates wheelchair users with an attendant.
Lower load capacity restrictions
With an increased lifting capacity, the lift supports multiple users while providing reliable mobility assistance.
Complex civil construction needs
Eliminates the requirement for a pit, machine room, or dedicated shaft, simplifying installation.
Accessibility challenges for seniors and users with disabilities
A smooth ride, wider door opening, and spacious interior ensure easy and safe entry and exit.
Noise, energy use, and frequent maintenance of traditional systems
The air-driven mechanism delivers quiet operation, improved energy efficiency, and reduced maintenance needs.
Enclosed and restrictive elevator cabins
A panoramic, transparent design creates an open, airy experience for a modern and comfortable ride.
Homes That Benefit Most from Series III Max
Advantages of Choosing the Nibav Series III Max
Spacious and comfortable cabin
Offers ample room for wheelchair users or multiple passengers to travel comfortably together.
Higher load capacity
Engineered to handle greater weight safely, making it suitable for family use and assisted mobility.
No pit and no machine room required
Reduces space requirements and avoids expensive structural modifications during installation.
Smooth, quiet, and energy-efficient ride
Air-powered operation means no vibrations or noise and very little electricity use.
Fast and hassle-free installation
Designed for quick setup within a few working days, with minimal disruption to daily life.
Panoramic and contemporary design
The transparent shaft and refined interior enhance the visual appeal of the home.
Accessibility-focused and wheelchair friendly
Improves movement across multiple floors, creating a more inclusive living environment.
Low maintenance with long-term reliability
Fewer moving components result in reduced wear, fewer breakdowns, and dependable performance over time.
What Safety Features Are Offered On The Nibav Series III Max?
Automatic Descent In The Event of Fire
In the event of a power failure, the automatic descent feature brings you to the nearest floor safely.
Battery Backup System
Provides critical lighting and ventilation during a power failure.
Door Interlock and Safety Sensors
Prevent the lift from moving until all doors are closed and locked.
Advanced Emergency Braking System
Provides an immediate stop to the cabin in any unusual situation.
Speed And Pressure Safety Locking System
When the pressure in the system drops below the maintenance level, the lift stops automatically.
Emergency Rescue Mechanism by Hand
This mechanism allows passengers to safely exit during very unusual emergencies.
Strong and long-lasting structure
Made with strong materials that will last a long time and keep passengers safe.
Following International Safety Standards
Made to meet high safety and quality standards around the world.
Download Detailed Brochure
Explore detailed insights into Nibav home lifts, including model ranges, specifications, finishes, and key features designed for everyday residential use.
Series III Max Home Lift – Frequently Asked Questions
Series III Max offers a larger cabin size and higher load capacity, making it suitable for wheelchair users and multiple passengers while retaining the same pneumatic vacuum technology.
Yes. The Series III Max is designed with a spacious cabin, wider door opening, and smooth operation, making it wheelchair-friendly for assisted and independent use.
The Series III Max can operate across up to 4 stops (G+3), ideal for multi-storey residential homes.
The Series III Max supports a 240 kg load capacity, suitable for family use and assisted mobility.
No. The lift features a self-supporting design and does not require a pit, machine room, or separate shaft.
The lift consumes electricity only during ascent and uses gravity-assisted descent, resulting in low overall power consumption.
Thanks to its modular CKD design, installation is typically completed within 2–3 working days, with minimal disruption.
Yes. It includes multiple safety layers such as door interlocks, automatic descent, emergency controls, and backup systems for everyday family use.
Yes. It offers multiple cabin colours, carpet options, ambient lighting, and optional comfort add-ons to suit different interior styles.
The grease-less engineering and reduced number of moving parts result in low maintenance requirements and long-term reliability.
Yes. The Series III Max is engineered in line with European safety standards and manufactured under internationally recognised quality systems.
