About

Nibav Home Lifts

Introducing Australia's revolutionary Home lifts. Nibav Home Lifts are designed with expert engineering to bring luxury to homes at an affordable price with almost ZERO Civil Work.

feature

World's Advance Home Lift

feature

Completely Knocked Down Structure

This lift will arrive at your residence in a semi assembled state, all our engineers do is put these parts together (Like A Lego), therefore we do not involve in sort of welding, taping or ducting work at your residence.

feature

European Standards of Safety

Nibav Home Elevators will be the only elevator technology in the world that does not require any battery back up or temporary power supply in the event of power failure. All safety features which includes Telephone, Light, Fan, Child Switch, Emergency Descend & Alarm are standard in Nibav Home Elevators.

feature

Self-Supported Shaft structure

Nibav Home Elevators come with its own self supported structure. This ensures that this elevator needs ZERO Civil Works, in fact you do not need to build any side wall, column, beam or even a supporting structure.

feature

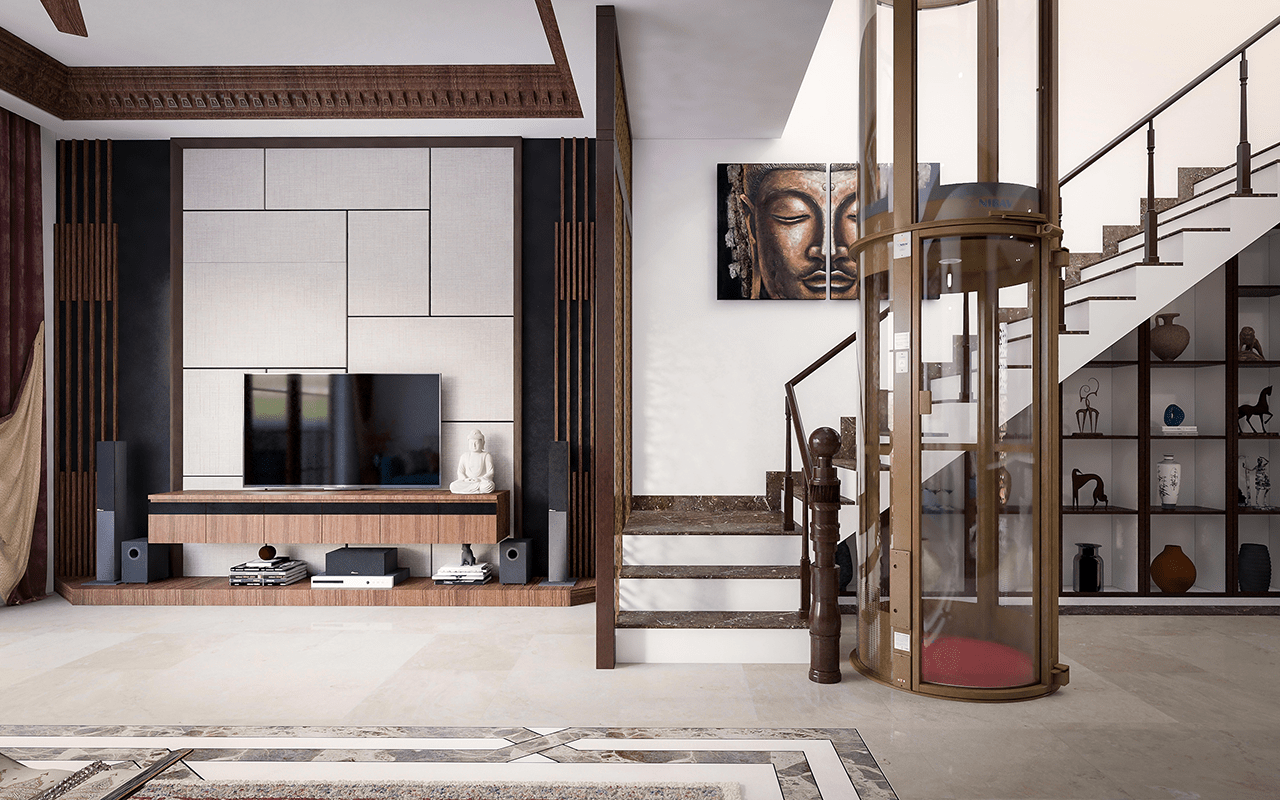

360-degree panoramic glass view

It is quite common for one to get claustrophobic especially when traveling in an enclosed elevator. Nibav Home Elevator allows you to enjoy the panoramic view of your house and surrounding with its 360 degree Glass.

feature

Compact and Comfortable

Conventional elevators require you to provide a space of 5ft x 5ft for a cabin space of 3ft x 3ft. But for Nibav Home lifts, all you need to provide is a space of 3.5ft x 3.5ft for a cabin size of 3ft x 3ft.

4 best benefits of owning a Nibav Home Lift

feature

Light Weight

Nibav Home Elevators are manufactured using the combination of Aluminium and Galvanised Steel, This allows the elevator to be light weight without compromising the strength. This also improves the built quality and life of the lifts as rusting become impossible. A two stop elevator would roughly weight only 680 KG , this allows the elevator to be installed even on your balcony or on existing flooring without any need of special concreting or reinforcements.

feature

Low Maintenance & Environment Friendly

Nibav Home Elevator operates on single phase power and consumes only 3.7 Kva of power when going up. During descend, this elevator consume ZERO power which make it a GREEN Elevator. Since our elevator use Air as the main source of operation, it does not require any oil or lubrication. This allows us to reduce the frequency of servicing from monthly to once every 4 months.

feature

No Pit and Machine Room Required

Elevator pits are known as the Devil's Basement, as its known for collecting dust and being a home for Insects and termites. This is no more an issue with Nibav Home Elevator, due to its pitless technology these elevators are even Vastu Compliant and ideal for existing homes.

feature

Superior Aesthetics

With a panoramic glass view on all sides, Nibav Home lifts provide you superior aesthetics when compared to the machinery look of conventional elevators. With our built in model, the entire system can be enclosed in a single entity that looks the most appealing in any type of interiors.

feature

Technical Specifications

Unit Types Integrated Unit Split-Off Unit Sound Proof Unit
Headroom Integrated: 2739mm Split: 2490mm Sound Proof: 2890mm
Maximum stops 4 Stops (G+3) 4 Stops (G+3) 4 Stops (G+3)
Max Travel Height 10500mm 10500mm 10500mm
Max.Load capacity 210kg 210kg 210kg
Travel Speed 0.15m/s 0.15m/s 0.15m/s
Clear Space Required 1010mm 1010mm 1010mm
Internal Cabin Height 2000mm 2000mm 2000mm
Internal cabin Diameter 853mm 853mm 853mm
External cylinder diameter 970mm 970mm 970mm
Shaft Construction Composition of Aluminum & steel Composition of Aluminum & steel Composition of Aluminum & steel
Special Glass Polycarbonate (250 times stronger than glass) Polycarbonate (250 times stronger than glass) Polycarbonate (250 times stronger than glass)
Power Consumption 3.7kVA 3.7kVA 3.7kVA
Electrical Requirement 230V, 60/50 Hz, 22-amp single phase power 230V, 60/50 Hz, 22-amp single phase power 230V, 60/50 Hz, 22-amp single phase power
data

Download Catalogue

Everything you need to know on getting the perfect Home Elevator for your Dream Home is much easier and more affordable than many people think. Download your free brochure to find out more.

Download
feature

TUV Nord Certified

Our Global Presence

Contact Us

We hope we have provided you with all the information you need and we are happy to answer any queries you might have in regards to the product and partnership model.
